>LC1-D65 AC contactor 9-95A

Categories: Industrial Controls Catalogue
MOQ: 1
Brand: ZHENGKUN
FOB port: Shanghai port,Ningbo port
Terms of Payment: Western Union,T/T Paypal
Deliverytime: 15 working days

description

Application

CJX2N series AC contact or is suitable for frequency 50/60Hz, rated insulation voltage up to1000V,rated operation current 9~150A under AC-3 duty. It is mainly used for making/breaking electric circuits at a long distance & for frequent starting ls topping & controlling AC Motors.It is used in combination with thermal relay to compose a magnetic motor starter. The products comply with IEC60947-4-1 standard.

Specification

Type		CJX2 N-09	CJX2 N-12	CJX2 N-18	CJX2 N-25	CJX2 N-32	CJX2 N-38	CJX2 N-40
Rated working current le (A) AC-3 Ue≤440V		9	12	18	25	32	38	40
Rated hear current lth (A)		25	25	32	40	50	50	60
Rated insulation voltage Ui (V)		690	690	690	690	690	690	1000
Rated operating voltage Ue (V) Max		690	690	690	690	690	690	1000
Rated operational power in AC-3 Pe (KW)	220/230V	2.2	3	4	5.5	7.5	9	11
	380/400v	4	5.5	7.5	11	15	18.5	18.5
	415/440V	4	5.5	9	11	15	18.5	22
	500V	5.5	7.5	10	15	18.5	18.5	22
	660/690V	5.5	7.5	10	15	18.5	18.5	30
Rated operational power in AC-4 Pe (KW)	220/230V	1.5	1.5	2.2	3	4	4	4
	380/400V	2.2	3.7	4	5.5	7.5	7.5	9
	415/440V	2.2	3	3.7	5.5	7.5	7.5	9/11
	500V	3	4	5.5	7.5	9	9	11
	660/690V	4	5.5	7.5	10	11	11	15
Frequency of operation (I/h)		1200	1200	1200	1200	1000	1000	1000
Electrical endurance (x10 4)	AC-3	100	100	100	100	80	80	80
Electrical endurance (x10 4)	AC-4	20	20	20	20	20	20	15
Mechanical endurance (x10 6)		15	15	15	15	15	15	6
Operating voltage range of coil	Close voltage:(0.85~1.1) Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	7	7	7	7	7	7	20
Power consumption of coil (VA)	Starting	70	70	70	70	70	70	200
Rated insulation voltageof auxitiary contacts (V)	690	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts (A)	10	10	10	10	10	10	10	10
Auxiliary contacts specification	AC-15:360VA DC-13:33W

Type		CJX2 N-50	CJX2 N-65	CJX2 N-80	CJX2 N-95	CJX2 N-115	CJX2 N-150
Rated working current le (A) AC-3 Ue≤440V		50	65	80	95	115	150
Rated hear current lth (A)		80	80	125	125	200	200
Rated insulation voltage Ui (V)		1000	1000	1000	1000	1000	1000
Rated operating voltage Ue (V) Max		1000	1000	1000	1000	1000	1000
Rated operational power in AC-3 Pe (KW)	220/230V	15	18.5	22	25	30	40
	380/400v	22	30	37	45	55	75
	415/440V	25/30	37	45	45	59	80
	500V	30	37	55	55	75	90
	660/690V	33	37	45	45	80	100
Rated operational power in AC-4 Pe (KW)	220/230V	5.5	7.5	7.5	9	9	11
	380/400V	11	11	15	15	18.5	22
	415/440V	11	11/1551	15	15	18.5	22
	500V	15	18.5	22	22	30	37
	660/690V	18.5	22	25	25	30	45
Frequency of operation (I/h)		1000	1000	750	750	750	750
Electrical endurance (x10 4)	AC-3	60	60	60	60	60	60
Electrical endurance (x10 4)	AC-4	15	15	15	15	15	15
Mechanical endurance (x10 6)		6	6	4	4	4	4
Operating voltage range of coil	Close voltage:(0.85~1.1) Us Open voltage:(20%~75%)Us
Power consumption of coil (VA)	Atracting	20	20	20	20	22	22
Power consumption of coil (VA)	Starting	200	200	200	200	300	300
Rated insulation voltageof auxitiary contacts (V)	690	690	690	690	690	690	690
Conventional thermal current of auxitiary contacts (A)	10	10	10	10	10	10	10
Auxiliary contacts specification	AC-15:360VA DC-13:33W

Standard Control Circuit Voltage

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

Characteristic

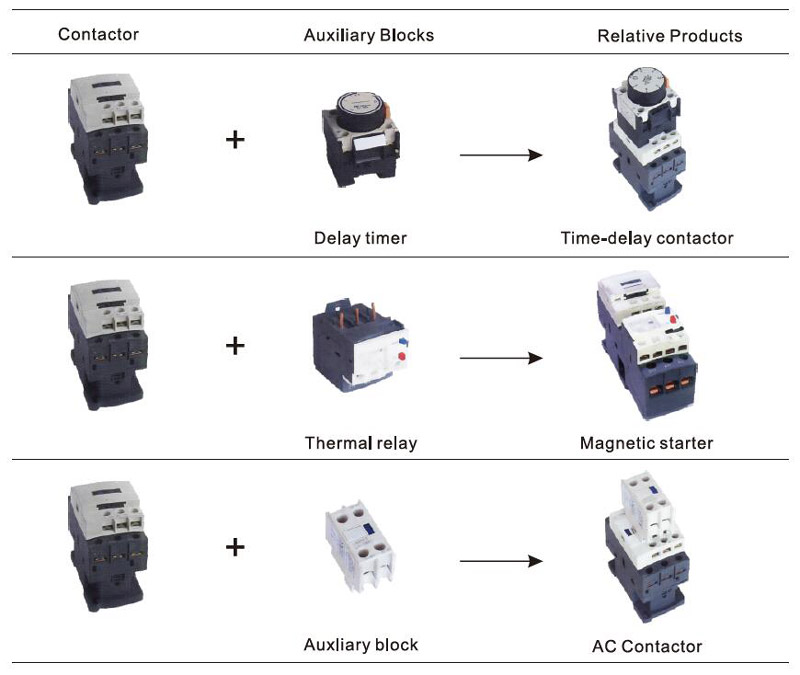

Contactor and other auxiliary blocks.

Volts

110

220

230

240

380

400

415

440

500

600

50Hz

60Hz

50/60Hz

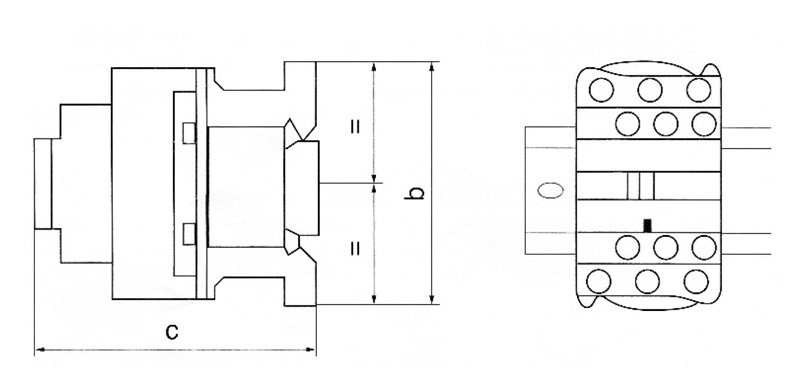

Outline and Mounting Dimension

	9	12	18	25	32	38	40	50	65	80	95	115	150
b	76.6	76.6	76.6	76.6	76.6	76.6	127	127	127	127	127	158	158
c	87	87	87	94	94	94	116	116	116	123.8	123.8	132	132
