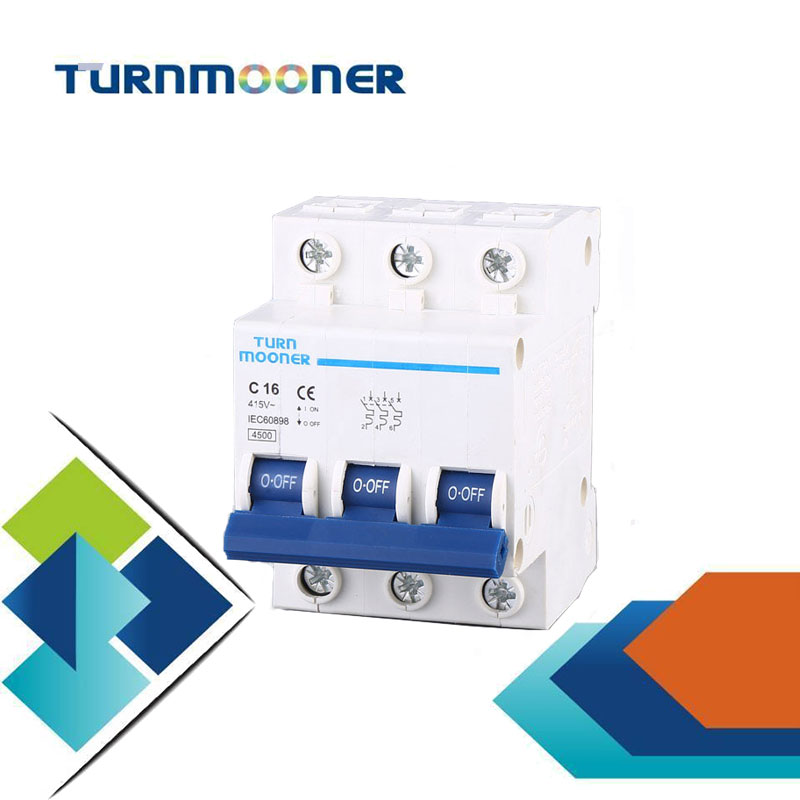

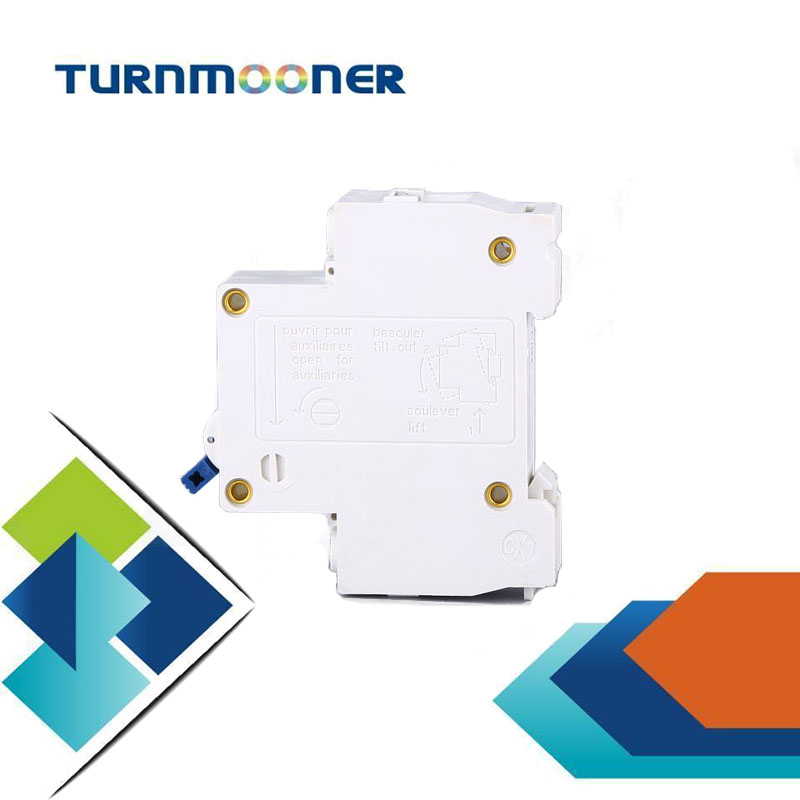

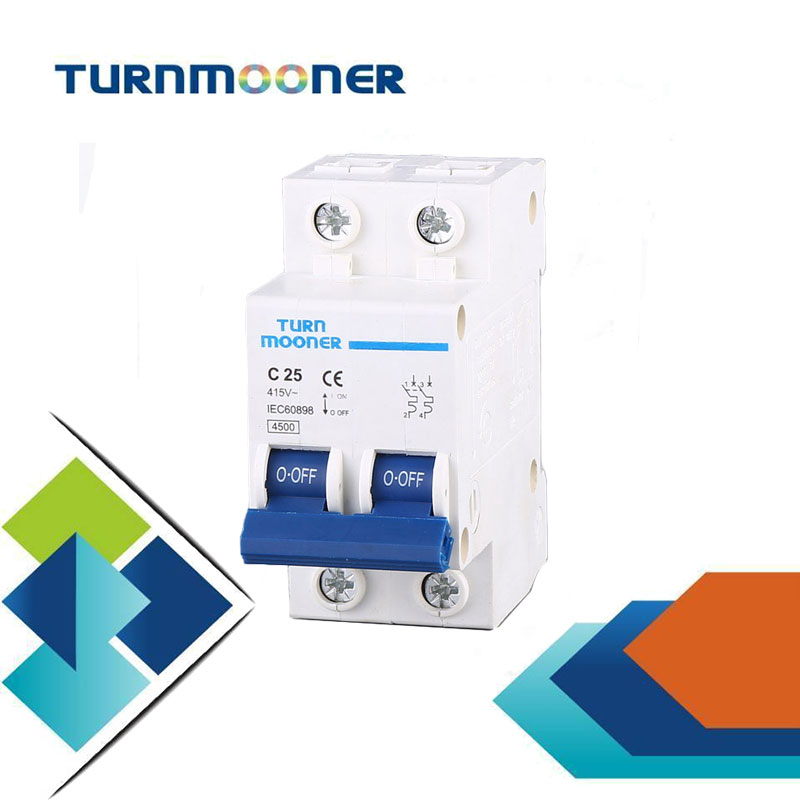

>ZM3-63 MCB(New Type With Indicator) Mini Circuit Breaker

Categories
Circuit Breaker For Din Rail
MOQ
1
Brand
ZHENGKUN
FOB port
Shanghai port,Ningbo port
Terms of Payment
Western Union,T/T Paypal
Deliverytime
15 working days

description

Electrical Features

Rated current In1,2,3,4,6,10,16,20,25,32,40,50,63A
Poles1P, 1P+N, 2P, 3P, 3P+N,4P
Rated voltage Ue240/415V
Insulation voltage Ui500V
Rated frequency50/60Hz
Rated breaking capacity4500A
Energy limiting class3
Rated impulse withstand voltage(1.2/50) Uimp4000V
Dielectric test voltage at ind. Freq. for 1 min2kV
Pollution degree2
Thermo-magnetic release characteristicB,C,D


Mechanical Features

Electrical life4,000
Mechanical life10,000
Contact position indicatorYes
Protection degreeIP20
Reference temperature for setting of thermal element30℃
Ambient temperature (with daily average ≤35℃ )-5℃ ...+40℃
Storage temperation-25℃ ...+70℃


Installation

Terminal connection typeCable/Pin-type busbar
Terminal size top/bottom for cable25mm2
Terminal size top/bottom for busbar25mm2
Tightening torque 2.0 N*m
MountingOn DIN rail EN 60715 (35mm) by means of fast clip device
ConnectionFrom top and bottom


Combination with accessories

Auxiliary contactYes
Shunt releaseYes
Under voltage releaseYes
Alarm contactYes

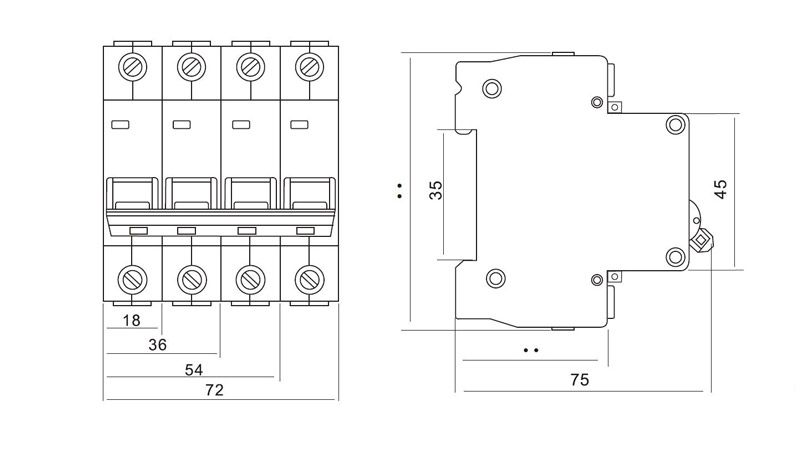

Overall and lnstallation Dimension
